LB19C-P20B-XXX

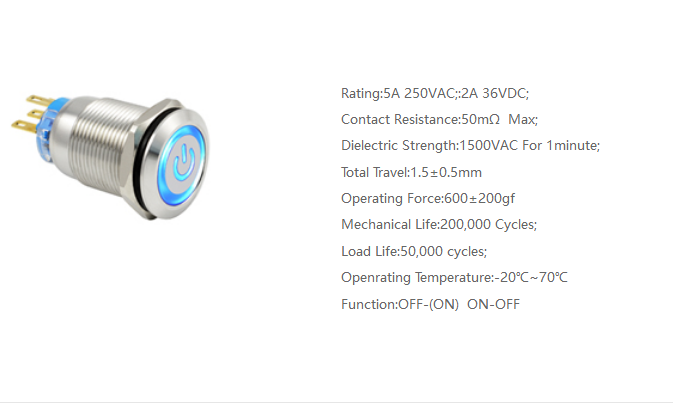

Item: Metal push button switch
Part Number:LB19C-P20B-XXX
Specification:
Rating: 5A 250VAC, 2A 36VDC
Contact Resistance:50m? Max
Dielectric strength: 1500VAC For 1 MIN
Operating Force: 600±200gf
Total Travel: 1.5±0.5mm
Operating Temperature：-20℃～70℃
Load life: 50,000 Cycles
Mechanical life:200,000 cycles
Function: OFF-(ON) ON-OFF
Application:
Electronic lock system
Coffee machine
Medical equipment
Home appliance
Automobile products
And so on
